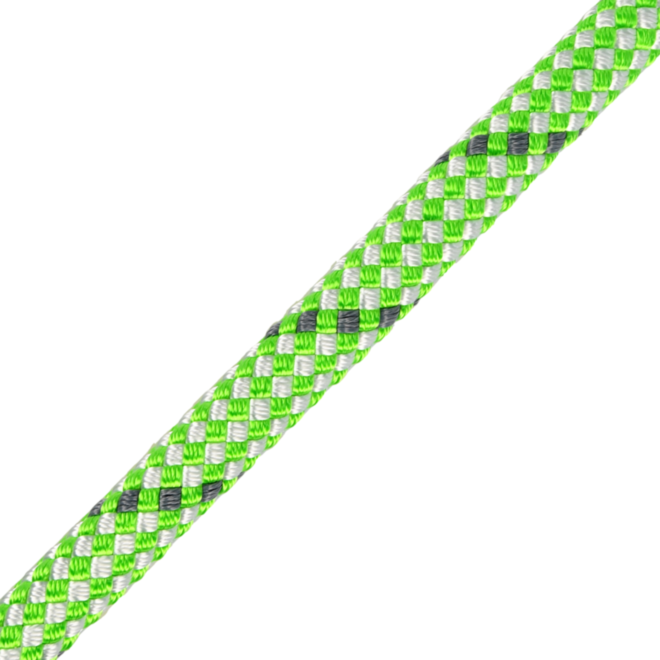

OMEGA-RQ18 Rigging Line 18mm

RIGIQ OMEGA-RQ 18mm Rigging Line

is a purpose-built arborist rigging rope engineered for durability, handling performance, and consistent load management in demanding tree work applications.

Its balanced construction helps share load more equally between the cover and core, supporting stable rope behaviour under load. With lower elongation than standard polyester, it helps improve control during lowering, positioning, and general rigging operations. Despite its robust build, OMEGA-RQ maintains a flexible, easy-handling feel for day-to-day use.

• Durable construction
• Long service life (with correct care and inspection)
• Balanced cover/core load sharing
• Lower stretch (<4%) for improved control
• Flexible handling for practical use
• Fitted with SCANNABLE SMARTPPE traceability

Typical applications: arborist lowering operations, controlled dismantling, and general tree rigging setups.

Rope body: un-terminated:

• Minimum Breaking Strength (MBS) un-terminated
• Test standard: ISO 2307 using a bollard-type termination

Termination: Spliced Eyes:

• Spliced-Eye Strength Rating (Sigma-derived)
• Basis: Calculated using Sigma standard deviation from 5 tensile test results (hand-spliced eyes).
• Test setup: Pin-to-pin tensile test; pin Ø50 mm; eye internal length 500 mm; overall specimen length 2,500 mm; double braid construction.

Reporting note: The spliced-eye rating is configuration and method-dependent and is provided as a statistically derived performance rating. It should not be used as a substitute for rope-body MBS unless the end-use configuration matches the stated test setup.

Important: All product information, specifications and performance data are provided for guidance only and were correct at the time of publication. Specifications may be updated without notice as part of ongoing product development.

Breaking Strength and Maximum Working Load

This product is supplied with breaking strength information (MBS/MBL). A maximum intended working load must be determined by the competent person by applying an appropriate Safety Factor (SF) to the breaking strength and ensuring the expected loads remain below that limit and below the ratings of all other components in the system.

Safety Factors (SF) / Design Factors

System Working Loads Rope and cordage systems are commonly managed using a Safety Factor (SF) (also referred to as a Design Factor or Coefficient of Utilisation). The Safety Factor is the relationship between the product’s breaking strength (e.g., MBS/MBL) and the maximum intended working load applied during use. The correct Safety Factor depends on the application, the environment, the expected loading type (static or dynamic), and the consequences of failure. In many rope rigging and lowering operations (including tree work), loads may be applied dynamically (e.g., during catches). The system and technique must be planned to minimise peak forces and avoid uncontrolled shock loading such as excessive free-fall, abrupt stops, or hard catches.

Typical Safety Factor guidance (set by the competent person/system designer):

• 5:1 – commonly used in controlled lifting system design
• 7:1 – commonly used for textile lifting slings in many EN-rated systems
• 10:1 (or higher) – often applied in rope rigging and lowering where dynamic effects and higher peak loads may occur

Important: These figures are provided as general guidance only. The required Safety Factor may be higher depending on the risk assessment, local regulations, industry practice, and operational conditions.

Note on terminology: “WLL” is typically a single limit assigned to equipment by the manufacturer under a defined standard. For rope systems, the competent person may determine a system working load / maximum intended working load by applying a Safety Factor appropriate to the task and conditions.

Always inspect rope and equipment before and after use. Retire any product showing signs of damage, excessive wear, contamination, heat damage, chemical exposure or other deterioration. Use only by trained and competent persons and in accordance with relevant industry best practice.
