YaleGrip 57mm / 12.2m

YaleGrips are used as pulling and stopping grips for electrical-line construction work above and below ground, for deployment and retrieval of a variety of cables, as marine stoppers on hawsers and for temporary or permanent strain relief. YaleGrips may be used for temporary or permanent eyes, both in midspan or on the end.

YaleGrips are made from a Technora® Aramid fiber at braid and are assembled in a 4-leg configuration extending from a reinforcing, securing eye. The eye is covered entirely with an extra layer of braid, which is saturated with Maxijacket urethane, an abrasion-resistant coating for extended life.

YaleGrips are far stronger than wire mesh grips and do not form dangerous “fishhooks,” as do wire mesh grips, making them safer to handle. Applied quickly over a wide range of cable diameters without the need for specialised tools.

YaleGrips are noncorrosive, have good dielectric properties and are compact and lightweight. When installed, the grip remains flexible and does less damage to mating surfaces than other types of grips.

Important: Size the grip by anticipated loads, not by the cable size it fits. When the anticipated load needs to be spread over a wider surface area, a six-leg grip is suggested. Larger-sized cables may be accommodated by lengthening tail dimension (“L”).  Please contact us for a quotation on the six leg or longer versions if required.

The T*M Version has urethane coating on the entire grip, which extends the grip’s life, especially useful in active towing applications. This is classed as “marine treatment.”

* = Number of Legs

T*M = Marine Treatment

YaleGrips are manufactured to order - please enquire regarding current lead times

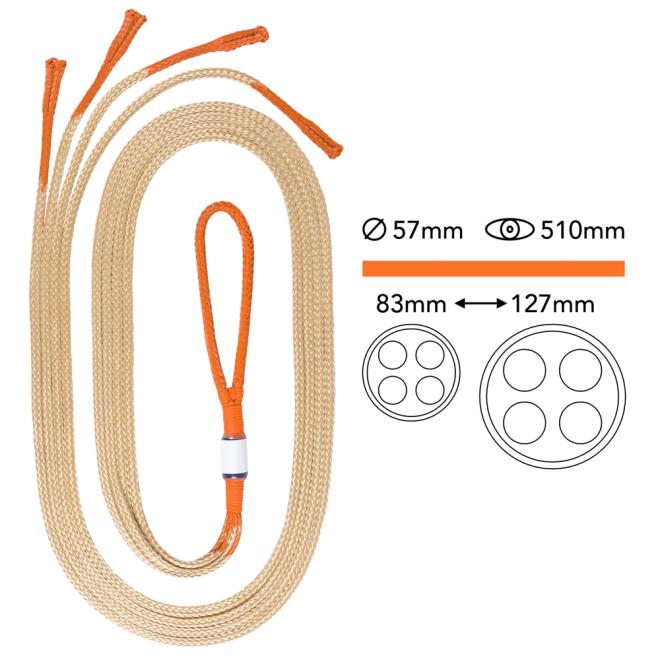

Note: Picture is for reference only and does not reflect the final product in size
