SMB1000 Lowering Bollard (Upgraded for 2024)

STEIN
£298.80 £249.00
In stock
SKU
SS-24SMB1000
GTIN / EAN13
5060660856763
SMB1000 Lowering Bollard (Upgraded for 2024) is available to buy in increments of 2

 Payment

SECURE ONLINE SHOPPING
PAYPAL is our Payment Provider – Visa, Mastercard, Maestro

 shipping

WORLDWIDE SHIPPING
We export to all major Global Counties via FEDEX

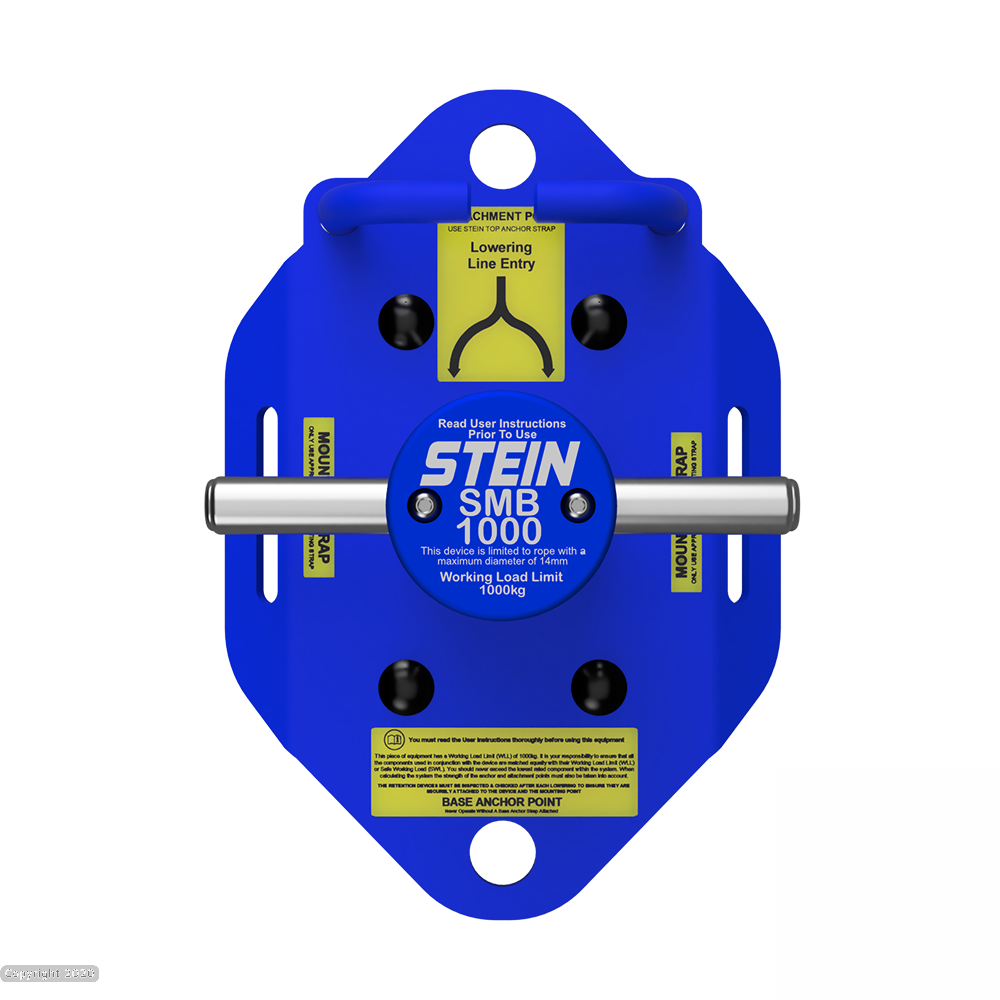

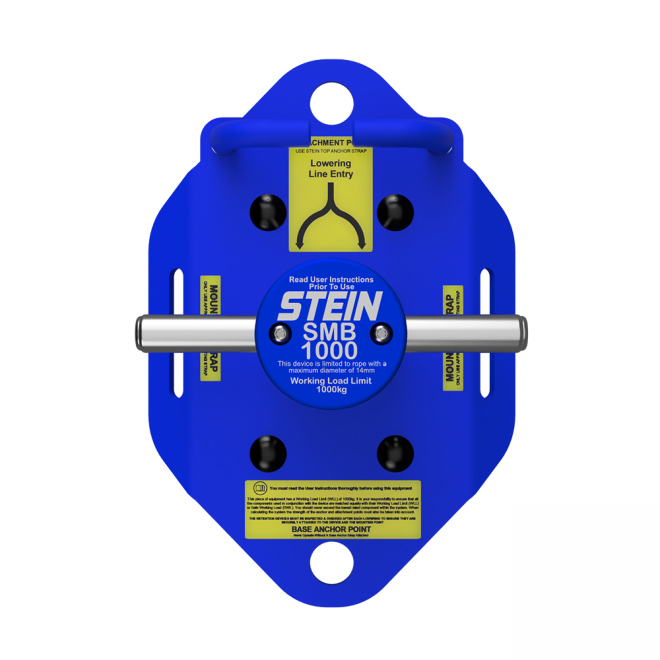

STEIN SMB1000 Fixed Lowering Device 1000kg WLL

Upgraded for 2024
The aluminium fairleads are now designed to be replaced should they become worn or slightly damaged through use and dual entry rope guides allows the working line to enter the device from either side.

The STEIN SMB1000 single bollard lowering device has a WLL of 1000kg and designed to work effectively with ropes of up to 14mm (Recommended Rope - STEIN Omega 12mm or 14mm). The line is guided down to the bollard and managed by fairleads both front and rear.

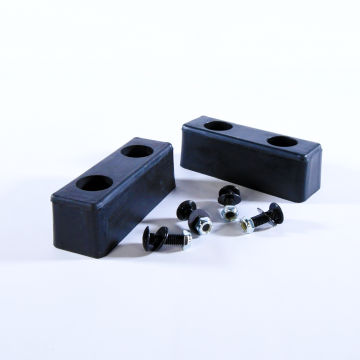

To help prevent damage to the tree the device is fitted with 2 replaceable heavy duty Preservation Rubbers made from a hardwearing blend of SBR/NR rubber.

The device weighs in at just 4.3kg so can easily be mounted by one person utilising the top suspension point with the recommended STEIN Mounting Strap (SS-RCP6004).

For added security it is recommended the device is backed up by securing a sling to the base anchor point terminated in a self-tightening hitch such as a cow-hitch or timber-hitch. (Recommended Sling - STEIN 20mm Multi-Sling SS-3372008005).

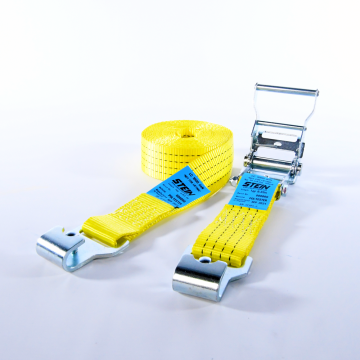

Ratchet Strap Specifications

Supplied with a specially designed ratchet strap fitted with Carbon Steel hooks with Keeper Pins to prevent the mounting hooks detaching from the device when not under tension. The webbing is made from a high tenacity 50mm wide polyester yarn and is UV resistant with a 6000kg breaking strength.

This strapping system allows the device to be fitted to tree with a diameter of up to 145cm

The ratchet meets the requirements of the European Load Restraint Legislation Standard EN12195-2:2001 which requires the buckle to have a lashing capacity (LC) of 1000daN. This capacity is stamped on the ratchet together with a label for full traceability. The breaking strength (BS) of 2000Kg is also shown to indicate the maximum load that can be applied to the buckle before failure.

STEIN SMB1000 SPECIFICATIONS

Working Load Limit:

Dimensions:

Bollard Dimension:

Materials:

Fairleads:

Body Finish:

Bollard Finish:

Rubbers:

Rubber Material:

Rubber Hardness:

Strapping System:

Webbing length:

Weight:

1000kg (WLL) refer to manual

210mm (w) x 310mm (h)

73mm diameter x 140mm (l)

Back Plate 5mm Steel

15mm Solid Bar

Powder coated

Lacquered with Rust Prevention

148mm (l) x 50mm (w) x 50mm (h)

SBR/NR rubber

70 medium/hard (Shore A Scale)

Ratchet Handle with tail

4.65m (5.0m combined with Ratchet Handle)

4.3kg (excluding Ratchet Strap)

5.8kg (Including Ratchet Strap)



More Information
Bollard Diameter mm 73
Manufacturer STEIN
Serial Number Yes
Working Load Limit (WLL) KG 1000
Maximum Rope Size 14mm
Style Fixed
Finish Plated & Powder Coated
Basic Weight KG 5.8
GTIN / EAN13 5060660856763
