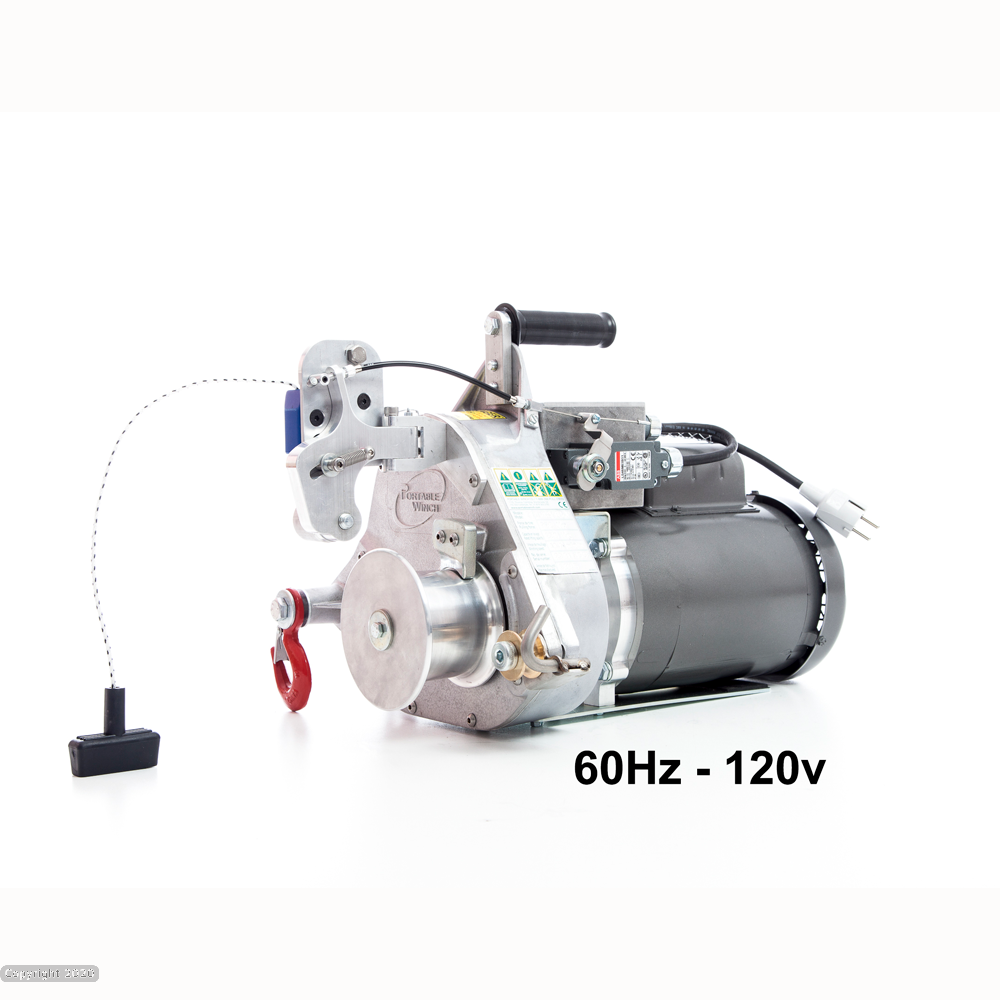

PCT1800 120v Electric Winch Pull/Lift
- Stock Code
- PW-PCT1800-60HZ-P-120V
In stock
In stock
|
|
SECURE ONLINE SHOPPING |
|
|
WORLDWIDE SHIPPING |
Description
This electric powered winch is ideal for indoor applications such as pulling wire through conduits or lifting equipment.
It can lift loads of 250 kg in a single line and a block and tackle system will increase the lifting capacity to 500 kg.
For lifting purposes, it is equipped with a rope grabbing system which will hold a load in position; allowing the operator to work safely.
The electric motor is activated by simply pulling on the rope. As soon as the operator stops pulling, the drum stops rotating, preventing rope damage. For the operator’s safety, it is equipped with a rope grabbing system which will prevent the rope from sliding inadvertently.
The PCT1800 is recommended for situations when gas-powered (petrol) winches cannot be used and is a good alternative when noise is an issue.
Find out more by downloading the user manual.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
WARRANTY
Private use : 2 years
Commercial use : 1 year
Motor: Baldor International Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
Specification
| Max Pull Capacity | 820kg |
|---|---|
| Max Lifting Capacity | 250kg |
| Installed Capstan Size | 85mm (Optional 57mm Drum Available - Increases Capacity) |
| Speed with Installed Capstan | 8.8 m/min |
| Rope Size | Min 12mm | Max 13mm | Ideal 12mm |
| Dry Weight | 24.0kg |
| Engine/Motor | C Electric Baldor TEFC 115/230 VAC - 1 ph - 3/4 HP - 60 Hz |
| Gear Ratio | 110:1 |
| Manufacturer | PORTABLE WINCH |
| GTIN / EAN13 | 690581001246 |
| Product icon | Special Order |
