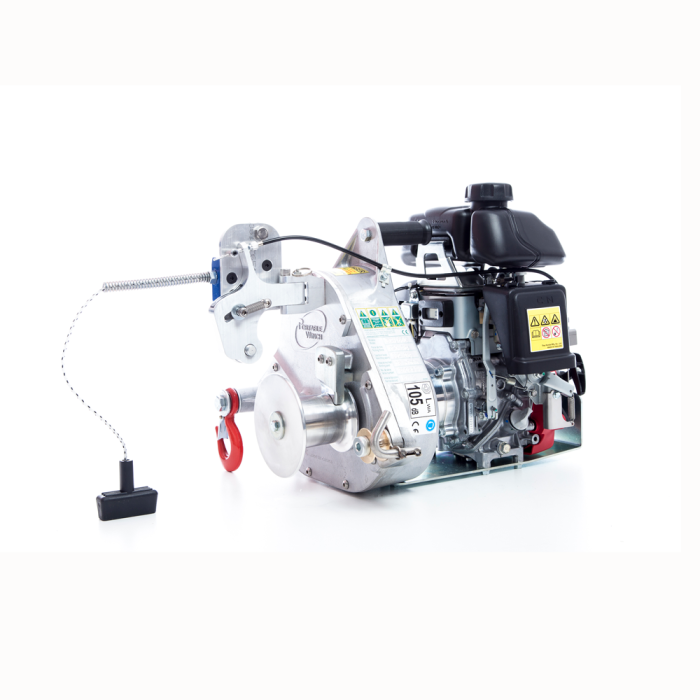

PCH1000 Petrol Winch Pull/Lift Version
The ideal tool for lifting a load!
The PCH1000 has been designed specifically for lifting applications on a work site such as assembling telecommunications structures or installing various equipment. It can lift a load of 250 kg with a single line and a pulley system doubles the strength to 500 kg.
Its integrated rope grabbing system (brake) will hold the load in position allowing the operator to work safely.
This system can be used to lift or lower a load. A wide of accessories are available to simplify the installation process and anchor the winch at various anchoring points such as a vehicle, a post, a pylon and more.
Find out more by downloading the user manual.
*Accessories sold separately.
*Note: One (1) anchor polyester sling 60 mm x 2 m is always included with every winch
Private use : 2 years
Commercial use : 1 year
Engine/Motor : Honda International Warranty
Additional information : Register your winch at www.portablewinch.com and get 1 EXTRA YEAR of warranty for FREE !
|Engine/Motor||Honda 4-stroke GXH-50 cc|
|Rope Size||Min 12mm | Max 13mm | Ideal 12mm|
|Speed with Installed Capstan||12 m/min|
|Installed Capstan Size||57mm (Optional 85mm Drum Available - Reduces Load Capacity)|
|Max Lifting Capacity||250kg|
|Max Pull Capacity||775kg|
|GTIN / EAN13||690581001130|
