PORTABLE WINCH Floor Mount Winch Anchor

PW-PCA-1805 690581002335

More Views

PORTABLE WINCH Floor Mount Winch Anchor PW-PCA-1805 690581002335
Excl. Tax: £210.00 Incl. Tax: £252.00
Description

Details

Portable Winch

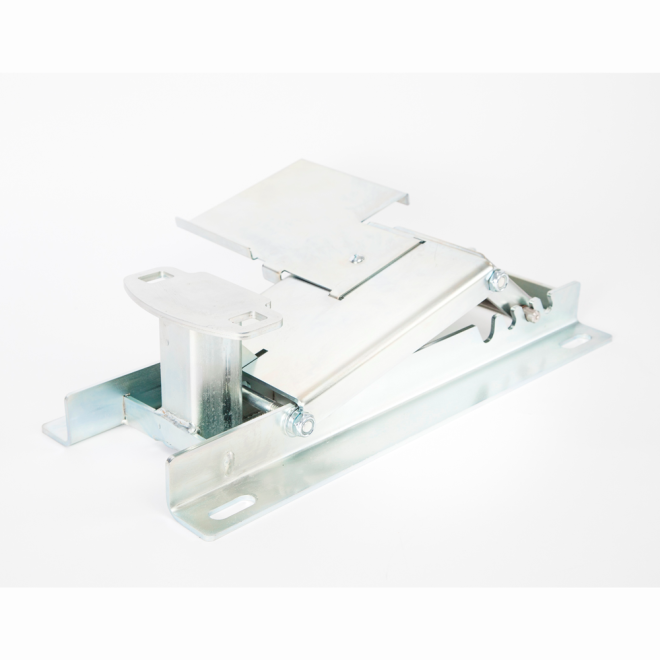

The anchoring system for floors is specially designed to anchor a winch when pulling electric cables through conduits and/or from an electric panel when other anchoring points are unavailable.

You can adjust the pulling angle based on the distance and the height of the conduits and the electric panel (4 different angles).

To use it, you must anchor it to the ground (anchoring accessories not included) so that the support is aligned with the electric panel or the conduits (thus the load) to be pulled.

Can be used with the following winch models:

  • PCW3000
  • PCW3000-Li
  • PCW5000
  • PCW5000-HS
  • PCH1000
  • PCT1800

SPECIFICATIONS

Material :  Zinc plated steel

WEIGHT & DIMENSIONS

Weight (metric) : 9,4 kg
Length (metric) : 51 cm
Width (metric) : 26 cm

ADDITIONAL INFORMATION

Additional Information : Very practical for inside use using our PCT1800 electric winches

Specification

Additional Information

Manufacturer PORTABLE WINCH
GTIN / EAN13 690581002335
Downloads
View File Anchor System Chart Size: (591.99 KB)
